This is the most common alloy of stainless steel used for sheet metal fabrication. It has good form ability and weld ability, and offers good corrosion resistance to both chemical and atmospheric conditions.

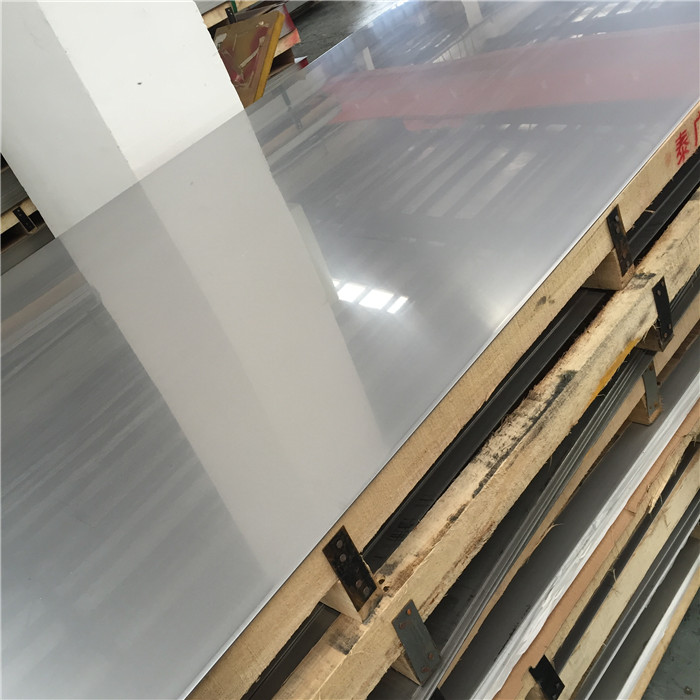

304 stainless steel 2B finish is a mill finish, which is smooth and NOT the brushed finish commonly seen on kitchen appliances. 304 stainless steel 2B finish is light gray in color. 304 stainless steel 2B finish may or may not have a protective film on one side to prevent scratching. Customers can contact the sales department to see if the 2B finish has a protective film on the material if needed; however, if a clean, non-scratched finish is desired, the #4 brushed finish will have a protective film every time.
304 stainless steel is a commercial grade of stainless steel sheet metal and the most widely used stainless steel. 304 stainless steel sheet metal is a versatile, anti-rusting and heat resistant steel for general use. 304 stainless steel sheet metal uses include food equipment, plumbing materials, kitchen sinks, and back splashes. 304 stainless steel sheet 2B finish is austenitic, meaning it will not attract or hold a magnet. If you need that option in stainless steel, the 430 grade will hold a magnet.
Fast, Accurate precision profile cutting of simple or complex components can be offered to customers to have your job custom cut.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
|
304 min |
- |
- |
- |
- |
- |
18.00 |
- |
8.0 |
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
304 |
515 |
205 |
40 |
92 |
201 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
304 |
8000 |
193 |
17.2 |
17.8 |
18.4 |
16.2 |
21.5 |
500 |
720 |
304 Stainless Steel sheet Used in Tractor
304 Stainless Steel sheet Used in Automotive Trim
304 Stainless Steel sheet Used in Stamped Machined Products
304 Stainless Steel sheet Used in Cookware
304 Stainless Steel sheet Used in Appliances
304 Stainless Steel sheet Used in Kitchen
304 Stainless Steel sheet Used in Food service Equipment
304 Stainless Steel sheet Used in Sinks
304 Stainless Steel sheet Used in Railway Cars
304 Stainless Steel sheet Used in Trailers
304 Stainless Steel sheet Testing
304 Stainless Steel sheet Cutting
304 Stainless Steel sheet Grinding
304 Stainless Steel sheet Forming Drilling/ Machining
