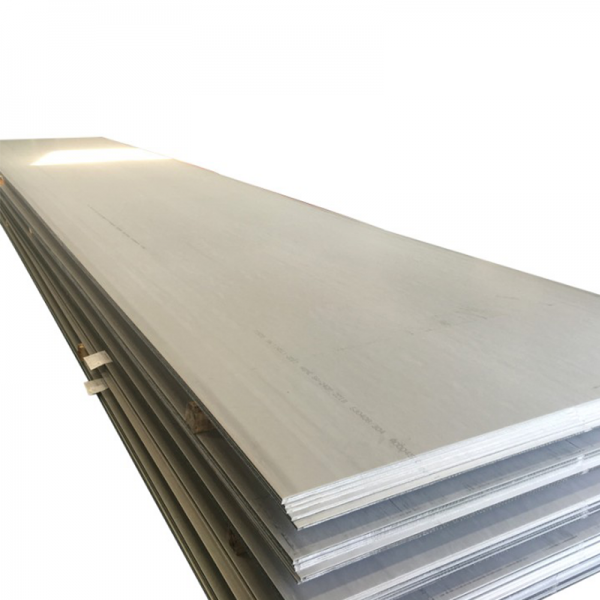

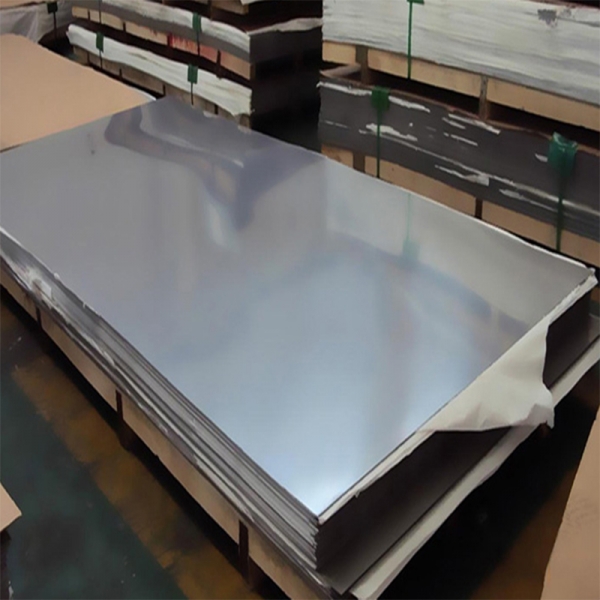

AISI 201 stainless steel sheet is a more durable stainless alloy than T309 due to a compound that includes half the nickel and increased manganese and nitrogen. It exhibits most of the same properties as the other stainless alloys but is not as ductile or formable. Due to its lower nickel content, 201 offers a lower-cost alternative to Cr-Ni austenitic stainless steel, such as 309 sheets. UNS S20100 SS Sheets is austenitic stainless steel manufactured from chromium-nickel manganese, originally designed to conserve nickel. ASTM A240 201 Stainless Steel Plate provides some excellent features, including high strength, high temperature, and pressure resistance, rugged construction, etc. ASTM A240 201 Stainless Steel Plate has excellent formability, resistance to corrosion, and manufacturing capability.
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
201 |
0.15 max |
5.5-7.5 |
100 max |
0.06 max |
0.03 max |
16.00-18.00 |
- |
0.3-0.5 |
- |
Properties |
Metric |
Imperial |
Tensile strength (transverse at room temperature) |
685 MPa |
99400 psi |
Tensile strength (longitudinal at room temperature) |
696 MPa |
101000 psi |
Yield strength (transverse at room temperature) |
292 MPa |
42400 psi |
Yield strength (longitudinal at room temperature) |
201 MPa |
43700 psi |
Compressive yield strength |
365 MPa |
52900 psi |
Elastic modulus |
197 GPa |
28573 ksi |
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
Elongation at break (longitudinal at room temperature) |
56% |
56% |
Elongation at break (transverse at room temperature) |
62.50% |
62.50% |
Hardness, Rockwell B (transverse at room temperature) |
85 |
85 |
Hardness, Rockwell B (longitudinal at room temperature) |
85 |
85 |
Properties |
Metric |
Imperial |
Density |
7.86 g/cm3 |
0.284 lb/in³ |
201 Stainless Steel sheet Used in Tractor
201 Stainless Steel sheet Used in Automotive Trim
201 Stainless Steel sheet Used in Stamped Machined Products
201 Stainless Steel sheet Used in Cookware
201 Stainless Steel sheet Used in Appliances
201 Stainless Steel sheet Used in Kitchen
201 Stainless Steel sheet Used in Food service Equipment
201 Stainless Steel sheet Used in Sinks
201 Stainless Steel sheet Used in Railway Cars
201 Stainless Steel sheet Used in Trailers
201 Stainless Steel sheet Testing
201 Stainless Steel sheet Cutting
201 Stainless Steel sheet Grinding
201 Stainless Steel sheet Forming Drilling/ Machining
