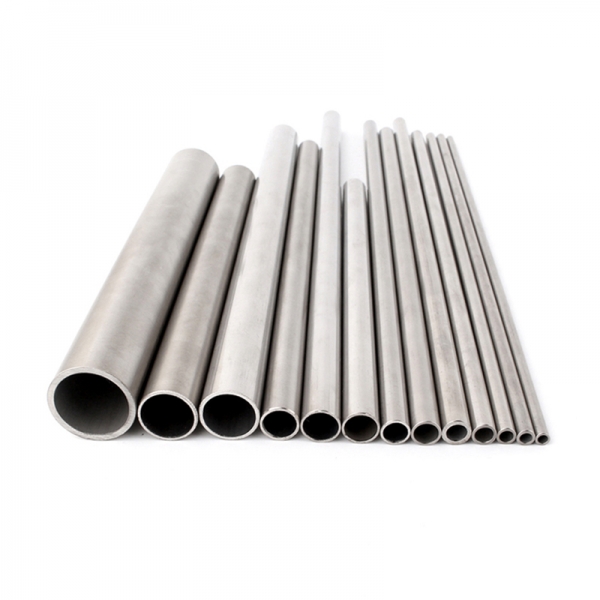

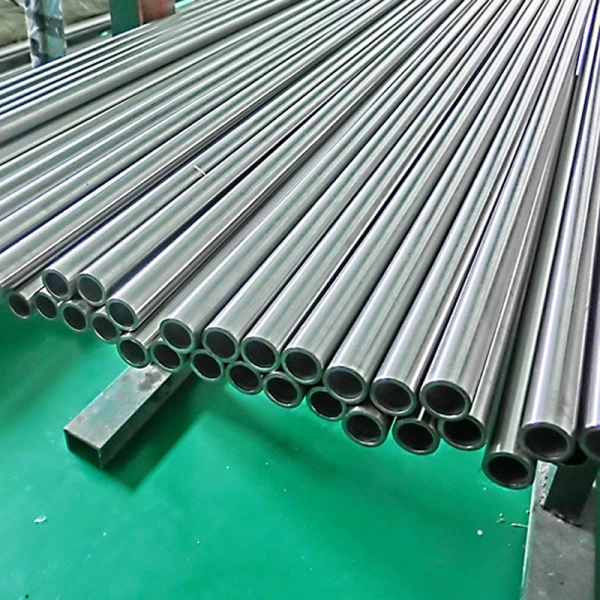

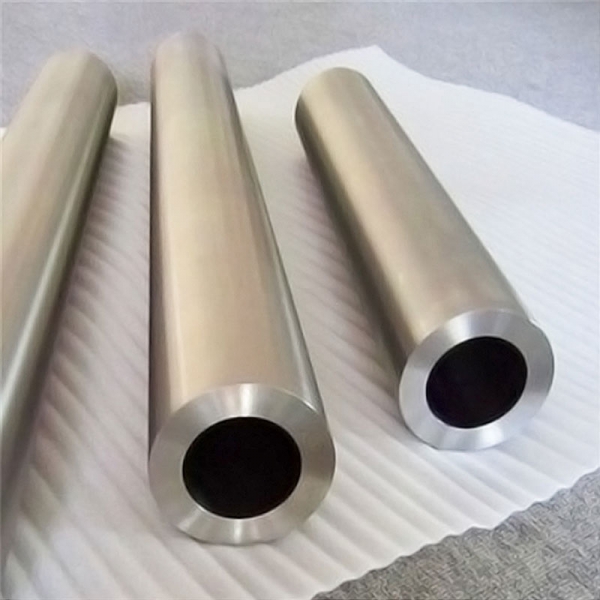

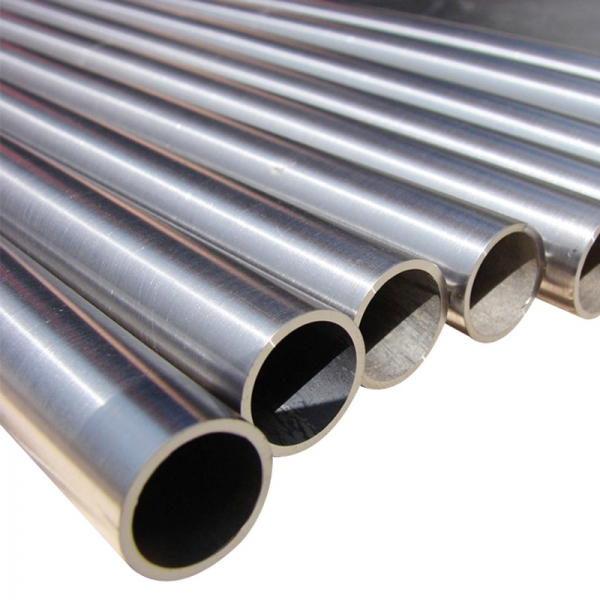

STAINLESS STEEL 316 PIPE, 316 STAINLESS STEEL SEAMLESS PIPE SPECIFICATION |
||
SS 316 Pipe Dimensions |
ASTM, ASME, API |
|
Stainless Steel 316 Pipe Sizes (Seamless) |
1/2" NB – 16" NB |
|
316 SS Pipe SIzes (ERW) |
1/2" NB – 24" NB |
|
Stainless Steel 316 Pipe Sizes (EFW) |
6" NB – 100" NB |
|
Wall Thickness of Seamless SS Pipe |
Schedule 5S – Schedule XXS (heavier on request) |
|
Trilok Steel Indutsries Specialized in |
Large Diameter Size |
|
End |
Plain End, Beveled End, Treaded |
|
Length |
Single Random, Double Random & Cut Length. |
|
SS 316 Pipe Other Materials Testing |
NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc |
|
Processing |
Cut-to-length, polishing,Polished Grit 120 - 600 |
NPS |
316 stainless steel pipe diamteres OD Tolerance |
|||
+ |
– |
|||
inch |
mm |
inch |
mm |
|
1/8~1 1 /2 |
1/64(0.015) |
0.4 |
1/32(0.031) |
0.8 |
The below table shows the chemical composition of the used for Stainless Steel Pipes:
STAINLESS STEEL 316 PIPE |
UNS |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
Ti |
Nb |
N |
TP316 |
S3160 |
0.08 |
2 |
0.045 |
0.03 |
1 |
16.0-18.0 |
11.0-14.0 |
2.0-3.0 |
|
|
|
Material |
Heat |
Temperure |
Tensile Strength |
Yield Strength |
Elongation %, Min |
Treatment |
Min. |
Ksi (MPa), Min. |
Ksi (MPa), Min. |
||
|
º F(º C) |
|
|
||
TP316 |
Solution |
1900(1040) |
75(515) |
30(205) |
35 |
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (m/m/0C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-1000C (J/kg.K) |
Electrical Resistivity (n.m) |
|||
0-1000C |
0-3150C |
0-5380C |
at 1000C |
at 5000C |
|||||
316 |
8000 |
193 |
15.9 |
16.2 |
17.5 |
16.3 |
21.5 |
500 |
740 |
Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
||
BS |
En |
No |
Name |
||||
316 |
S31600 |
304S11 |
58E |
1.4401 |
X5CrNiMo17-12-2 |
2347 |
SUS 316 |
