316 Stainless Steel Plate Specification:
316 Stainless Steel Plate Specification |
ASTM A240 / ASME SA240 |
316 Stainless Steel Manufacturing Process |
Hot Rolled (HR) / Cold Rolled (CR) |
316 Stainless Steel Plate Grades |
202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. |
316 Stainless Steel Plate Thickness |
0.6 MM TO 80 MM THICKNESS |
316 Stainless Steel Plate Width |
1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
316 Stainless Steel Plate Length |
2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
316 Stainless Steel Plate Surface Finish |
2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
316 Stainless Steel Plate Coating |
PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
316 Stainless Steel Plate Other Testing |
NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
316 Stainless Steel Plate Value Added Services |
Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |

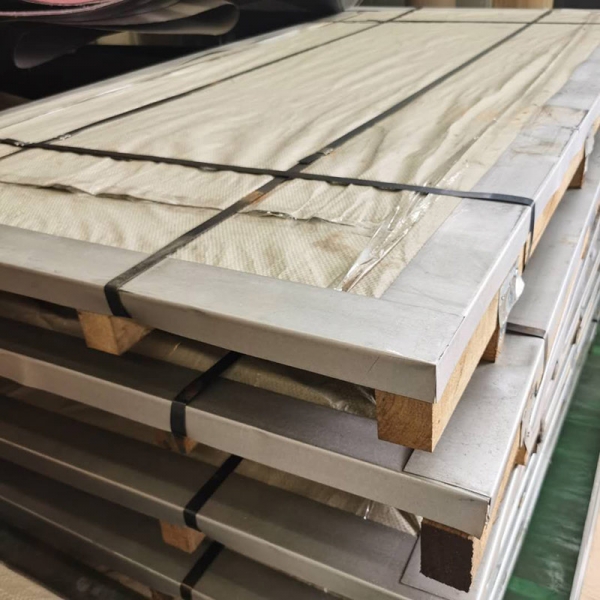

316 Stainless Steel Plate Packaging |
Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
316 Stainless Steel Plate Shipment & Transportation |
By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
316 Stainless Steel Plate Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
1. Wide Specifications Range;
2. Eco-friendly and 100 % recyclable;
3. Outstanding mechanical properties;
4. Good performance after welding;
5. Good shape and high precision;
6. Excellent corrosion-resistant and long service life.
With all kinds of processing, NC flame, plasma, laser and water jet cutting, drilling, punching,welding, bending, etc. We can supply other stainless steel products, like stainless steel sheet, stainless steel pipe, u tube, H beam, flat bar, and so on. We can also provide you with the following services:
1. Unscreen-rolling of steel coils and flattening into steel plates
2. Steel coil is divided into strip and steel strip.
3. Split into small steel coil other products we can provide you
The chemical composition of grade 316 Stainless Steel is outlined in the following table
Grade |
|
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
316 |
Min |
- |
- |
- |
0 |
- |
16.0 |
2.00 |
10.0 |
- |
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
316H |
Min |
0.04 |
0.04 |
0 |
- |
- |
16.0 |
2.00 |
10.0 |
- |
max |
0.10 |
0.10 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
- |
The mechanical properties of grade 316 Stainless Steel Plates are displayed in the following table.
Grade |
Tensile Str(MPa) min |
Yield Str0.2% Proof(MPa) min |
Elong(% in 50mm) min |
Hardness |
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
316 |
515 |
205 |
40 |
95 |
217 |
316L |
485 |
170 |
40 |
95 |
217 |
316H |
515 |
205 |
40 |
95 |
217 |
Grade |
Density |
Elastic Modulus(GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
Thermal Conductivity(W/m.K) |
Specific Heat 0-100°C |
Elec Resistivity |
|||
0-100°C |
0-315°C |
0-538°C |
At 100°C |
At 500°C |
|||||
316/L/H |
8000 |
193 |
15.9 |
16.2 |
17.5 |
16.3 |
21.5 |
500 |
740 |
Possible alternative grades to 316 grade stainless steel
EN-standard Steel no. k.h.s DIN |
EN-standard |
SAE grade |
UNS |
1.4109 |
X65CrMo14 |
440A |
S44002 |
1.4112 |
X90CrMoV18 |
440B |
S44003 |
1.4125 |
X105CrMo17 |
440C |
S44004 |
|
|
440F |
S44020 |
1.4016 |
X6Cr17 |
430 |
S43000 |
1.4408 |
G-X 6 CrNiMo 18-10 |
316 |
S31600 |
1.4512 |
X6CrTi12 |
409 |
S40900 |
|
|
410 |
S41000 |
1.4310 |
X10CrNi18-8 |
301 |
S30100 |
1.4318 |
X2CrNiN18-7 |
301LN |
|
1.4307 |
X2CrNi18-9 |
304L |
S3043 |
1.4306 |
X2CrNi19-11 |
304L |
S30403 |
1.4311 |
X2CrNiN18-10 |
304LN |
S30453 |
1.4301 |
X5CrNi18-10 |
304 |
S30400 |
1.4948 |
X6CrNi18-11 |
304H |
S30409 |
1.4303 |
X5CrNi18-12 |
305 |
S30500 |
|
X5CrNi30-9 |
312 |
|
1.4841 |
X22CrNi2520 |
310 |
S31000 |
1.4845 |
X 5 CrNi 2520 |
310S |
S31008 |
1.4541 |
X6CrNiTi18-10 |
321 |
S32100 |
1.4878 |
X12CrNiTi18-9 |
321H |
S32109 |
1.4404 |
X2CrNiMo17-12-2 |
316L |
S31603 |
1.4401 |
X5CrNiMo17-12-2 |
316 |
S31600 |
1.4406 |
X2CrNiMoN17-12-2 |
316LN |
S31653 |
1.4432 |
X2CrNiMo17-12-3 |
316L |
S31603 |
1.4435 |
X2CrNiMo18-14-3 |
316L |
S31603 |
1.4436 |
X3CrNiMo17-13-3 |
316 |
S31600 |
1.4571 |
X6CrNiMoTi17-12-2 |
316Ti |
S31635 |
1.4429 |
X2CrNiMoN17-13-3 |
316LN |
S31653 |
1.4438 |
X2CrNiMo18-15-4 |
317L |
S31703 |
1.4362 |
X2CrNi23-4 |
2304 |
S32304 |
1.4462 |
X2CrNiMoN22-5-3 |
2205 |
S31803/S32205 |
1.4501 |
X2CrNiMoCuWN25-7-4 |
J405 |
S32760 |
1.4539 |
X1NiCrMoCu25-20-5 |
904L |
N08904 |
1.4529 |
X1NiCrMoCuN25-20-7 |
|
N08926 |
1.4547 |
X1CrNiMoCuN20-18-7 |
254SMO |
S31254 |
