202 Stainless Steel is one of the most widely used precipitation hardening grades, and possesses good corrosion resistance, toughness, high harness, and strength.
The mach inability of SS 202 Plates forms elongated and adhesive chips. Adding of alloying features in Stainless Steel 202 Plates is typically for the drive to upsurge hardness, chemical resistance or strength.
202 Stainless Steel Plates is a lower cost substitute to conservative chromium-nickel steel like 202 and 301. Meanwhile, 202 Sheets is manufactured and designed by using excellent quality raw material and cutting-edge technology by our accomplished authorities.
202 Stainless Steel Plate Specification |
ASTM A240 / ASME SA240 |
202 Stainless Steel Manufacturing Process |
Hot Rolled (HR) / Cold Rolled (CR) |
202 Stainless Steel Plate Grades |
202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. |
202 Stainless Steel Plate Thickness |
0.6 MM TO 80 MM THICKNESS |
202 Stainless Steel Plate Width |
1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
202 Stainless Steel Plate Length |
2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
202 Stainless Steel Plate Surface Finish |
2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
202 Stainless Steel Plate Coating |
PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
202 Stainless Steel Plate Other Testing |
NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
202 Stainless Steel Plate Value Added Services |
Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
202 Stainless Steel Plate Packaging |
Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
202 Stainless Steel Plate Shipment & Transportation |
By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
202 Stainless Steel Plate Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Element |
Content (%) |
Iron, Fe |
68 |
Chromium, Cr |
17- 19 |
Manganese, Mn |
7.50-10 |
Nickel, Ni |
≤ 1 |
Nitrogen, N |
≤ 0.25 |
Carbon, C |
≤ 0.15 |
Phosphorous, P |
≤ 0.060 |
Sulfur, S |
≤ 0.030 |
The mechanical properties of grade 202 Stainless Steel Plates are displayed in the following table.
Properties |
Metric |
Imperial |
Tensile strength |
515 MPa |
74694 psi |
Yield strength |
275 MPa |
39900 psi |
Elastic modulus |
207 GPa |
30000 ksi |
Poisson's ratio |
0.27-0.30 |
0.27-0.30 |
Elongation at break |
40% |
40% |
EN-standardSteel no. k.h.s DIN |
EN-standardSteel name |
SAE grade |
UNS |
1.4109 |
X65CrMo14 |
440A |
S44002 |
1.4112 |
X90CrMoV18 |
440B |
S44003 |
1.4125 |
X105CrMo17 |
440C |
S44004 |
|
|
440F |
S44020 |
1.4016 |
X6Cr17 |
430 |
S43000 |
1.4408 |
G-X 6 CrNiMo 18-10 |
316 |
S31600 |
1.4512 |
X6CrTi12 |
409 |
S40900 |
|
|
410 |
S41000 |
1.4310 |
X10CrNi18-8 |
301 |
S30100 |
1.4318 |
X2CrNiN18-7 |
301LN |
|
1.4307 |
X2CrNi18-9 |
304L |
S3043 |
1.4306 |
X2CrNi19-11 |
304L |
S30403 |
1.4311 |
X2CrNiN18-10 |
304LN |
S30453 |
1.4301 |
X5CrNi18-10 |
304 |
S30400 |
1.4948 |
X6CrNi18-11 |
304H |
S30409 |
1.4303 |
X5CrNi18-12 |
305 |
S30500 |
|
X5CrNi30-9 |
312 |
|
1.4841 |
X22CrNi2520 |
310 |
S31000 |
1.4845 |
X 5 CrNi 2520 |
310S |
S31008 |
1.4541 |
X6CrNiTi18-10 |
321 |
S32100 |
1.4878 |
X12CrNiTi18-9 |
321H |
S32109 |
1.4404 |
X2CrNiMo17-12-2 |
316L |
S31603 |
1.4401 |
X5CrNiMo17-12-2 |
316 |
S31600 |
1.4406 |
X2CrNiMoN17-12-2 |
316LN |
S31653 |
1.4432 |
X2CrNiMo17-12-3 |
316L |
S31603 |
1.4435 |
X2CrNiMo18-14-3 |
316L |
S31603 |
1.4436 |
X3CrNiMo17-13-3 |
316 |
S31600 |
1.4571 |
X6CrNiMoTi17-12-2 |
316Ti |
S31635 |
1.4429 |
X2CrNiMoN17-13-3 |
316LN |
S31653 |
1.4438 |
X2CrNiMo18-15-4 |
317L |
S31703 |
1.4362 |
X2CrNi23-4 |
2304 |
S32304 |
1.4462 |
X2CrNiMoN22-5-3 |
2205 |
S31803/S32205 |
1.4501 |
X2CrNiMoCuWN25-7-4 |
J405 |
S32760 |
1.4539 |
X1NiCrMoCu25-20-5 |
904L |
N08904 |
1.4529 |
X1NiCrMoCuN25-20-7 |
|
N08926 |
1.4547 |
X1CrNiMoCuN20-18-7 |
254SMO |
S31254 |

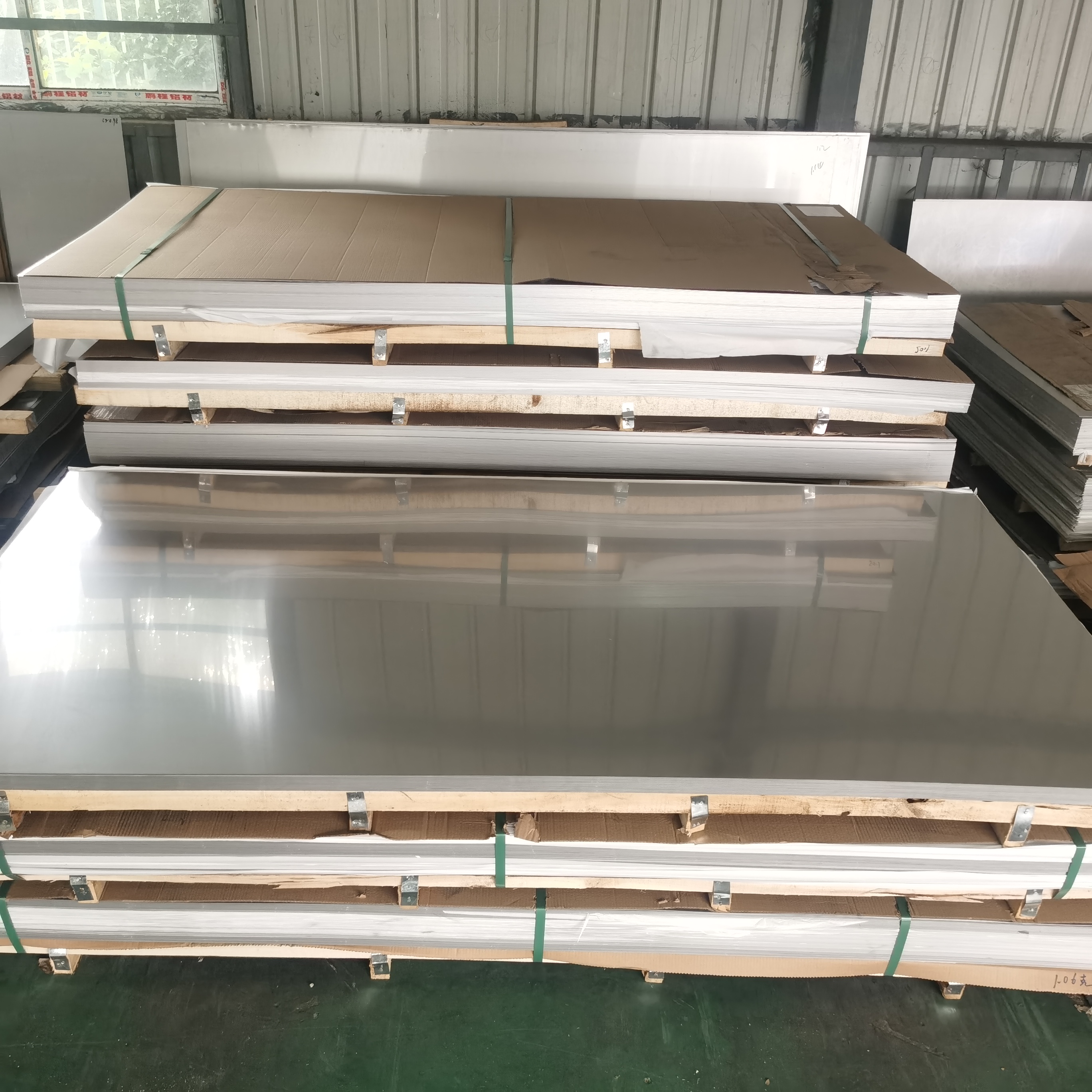

202 Stainless Steel Plates is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.
