The grades 316 and 316l of austenitic stainless steels are similar to 304 and 304L, but with the addition of molybdenum. Grade 316 is the standard molybdenum-bearing grade, second in overall volume production to 304 among the austenitic stainless steels. The addition of molybdenum improves the alloys corrosion resistance, particularly with higher resistance to pitting and crevice corrosion in chloride environments. The austenitic structure allows excellent toughness, even down to cryogenic temperatures. Grade 316L is the low carbon version of 316 and has very high immunity from sensitization (grain boundary carbide precipitation). It is extensively used in the oil and gas and chemical industries for its cost effective corrosion resistance and ease of fabrication.
316 and 316L have excellent weld-ability, with or without the addition of filler metal.
Typical Chemical Composition % (max values, unless noted) |
||||||||
Weight % |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
316 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
316L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |

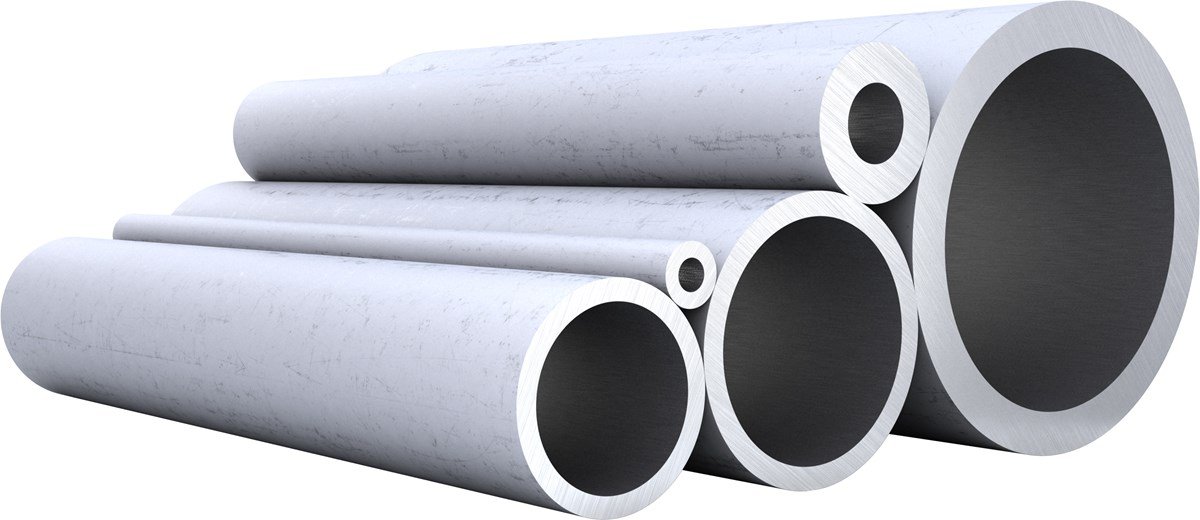

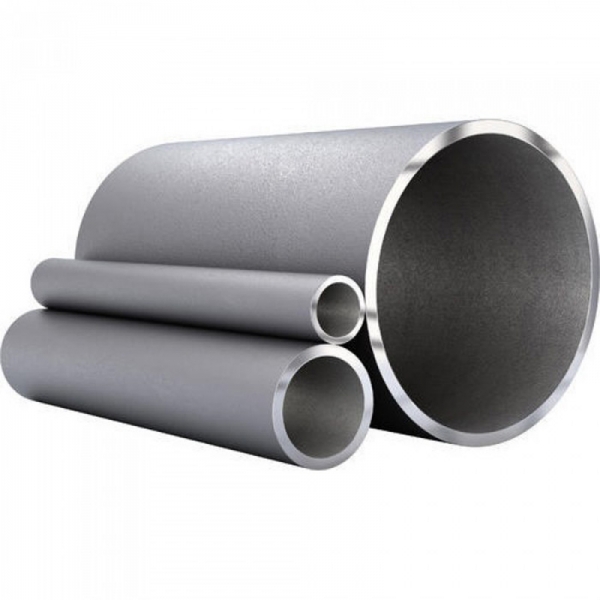

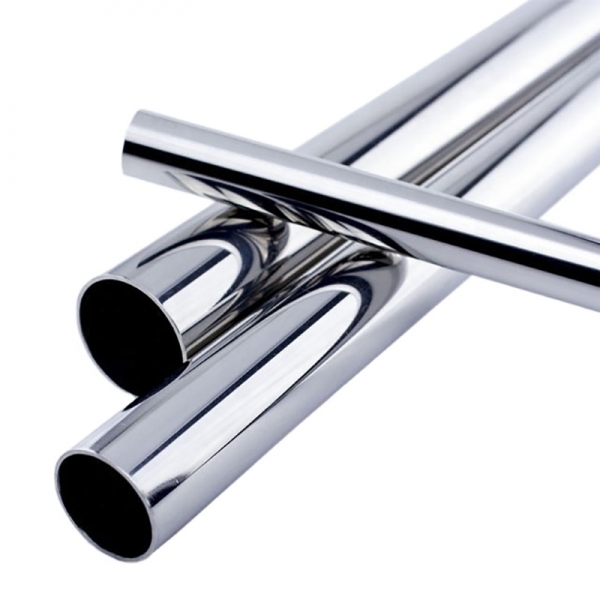

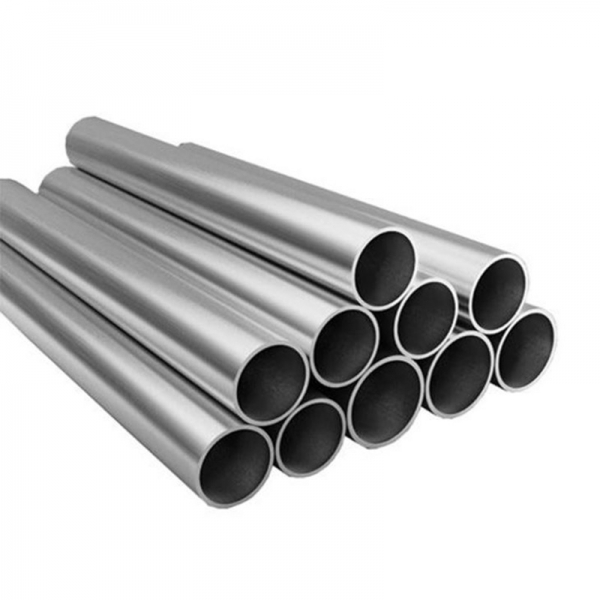

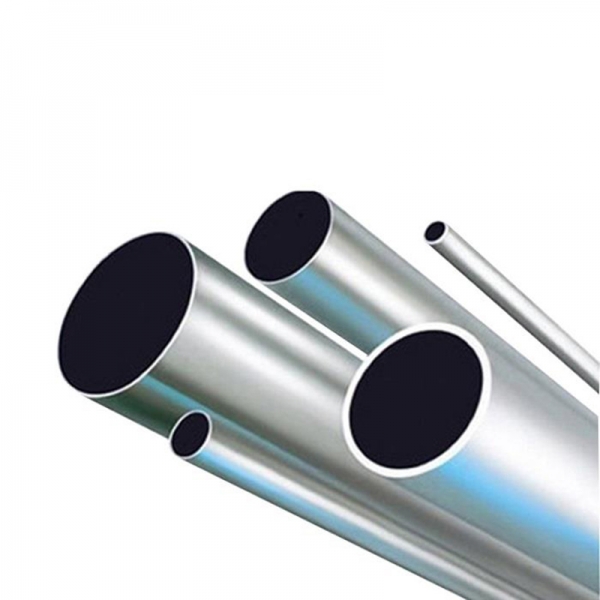

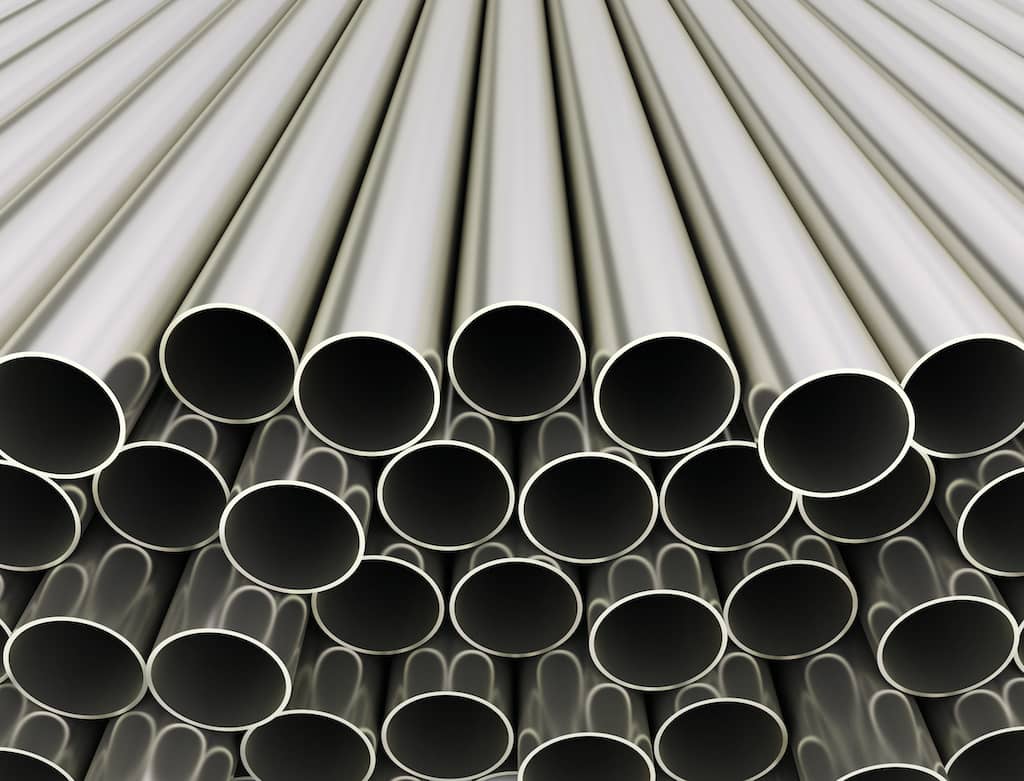

316 Stainless Steel provides the best resistance to pitting and corrosion of any of the austenitic (300 series) stainless steels. It is extremely ductile, with excellent strength at elevated temperatures. Seamless tubing can be produced with heavier wall thicknesses for mechanical applications. It is ideal for hydraulic and instrumentation tubing in chemical, textile, and pulp and paper industries, and in marine environments.
Characteristics: 316 stainless steel tubing is more resistant to corrosion and pitting than 304 stainless steel and offers higher strength at elevated temperatures. In addition, 316L is an extra low carbon variation that helps avoid carbide precipitation due to welding.
There is commonly no appreciable price difference between 316 and 316L stainless steel. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.
Wuxi liansen Metal can offer 316 stainless steel pipe, 316 stainless steel sheet, 316 stainless steel bar
Please feel free to contact with us by email:alexzhang@liansen.vip or WhatsApp:0086-18012365661 We will reply you at the first time.
