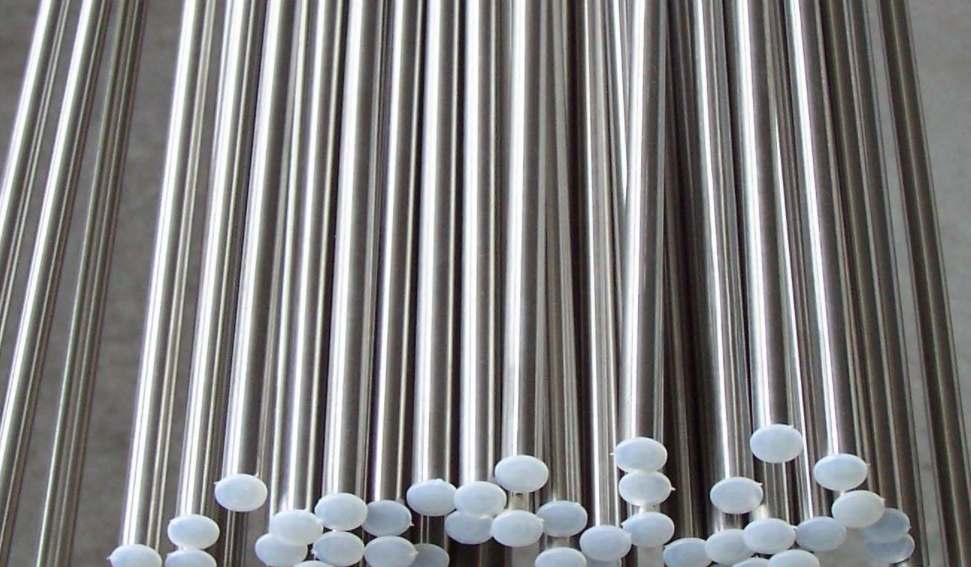

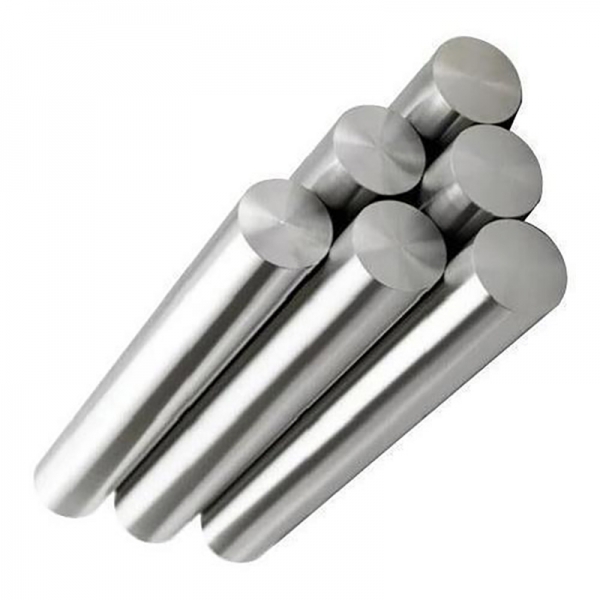

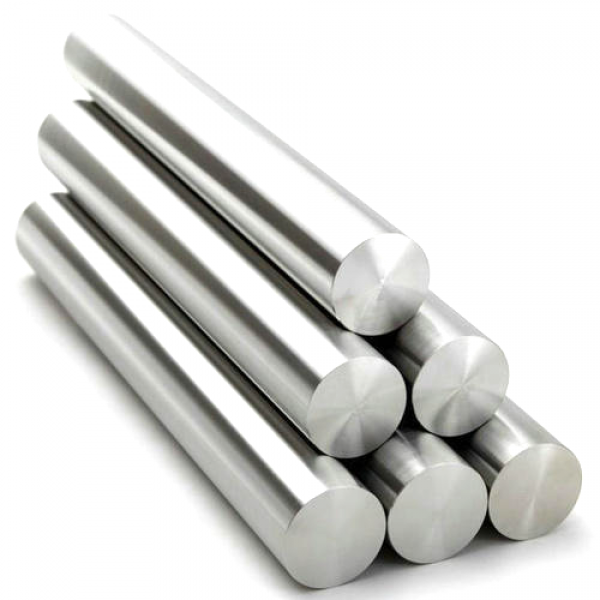

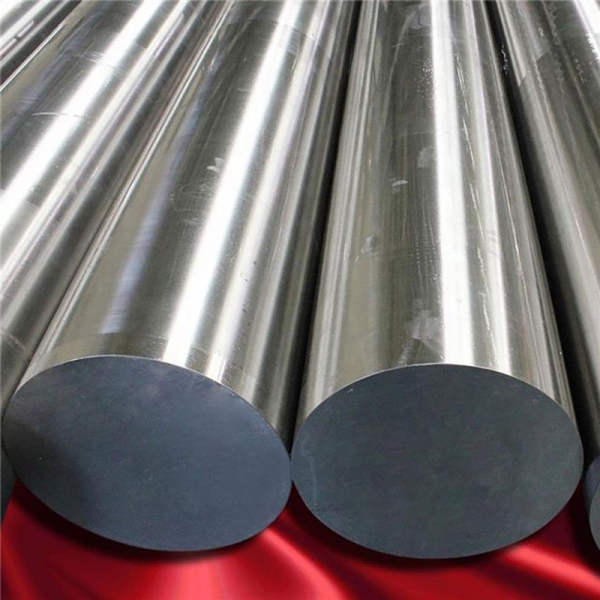

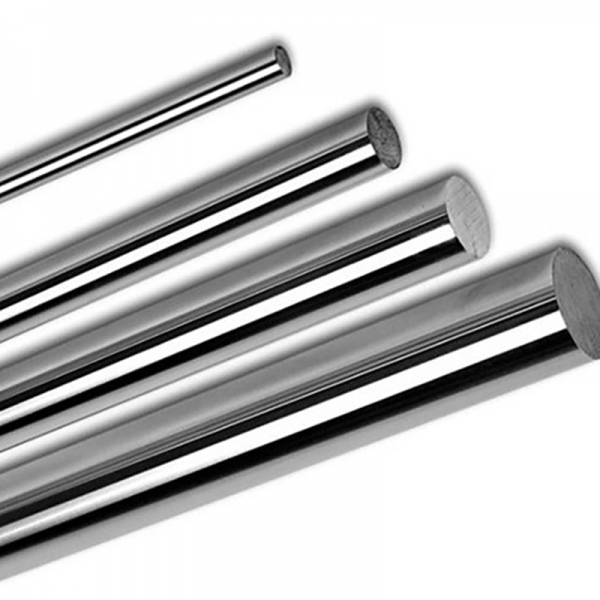

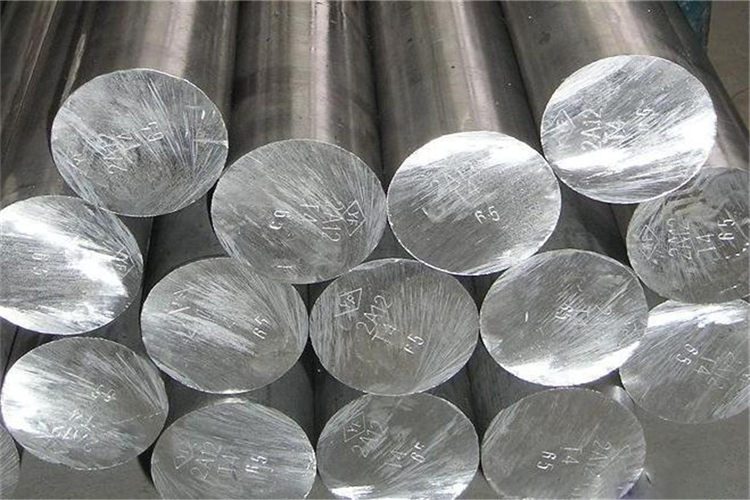

304 Stainless Steel Round Bar can be categorically said that steel bars are one of the core components of any manufacturing industry or for that matter any industry that relies on mechanics. versatile applications in automotive, textile, fabrication, construction, cement, ship building, paper and pulp, defence, heavy earth moving equipment or aerospace.
|
SS 304 Round Bar Specification |
ASTM A276 / ASTM A479 /ASTM A182 / ASME SA276 / ASME SA479 / ASME SA182 |
|
SS 304 Round Bar Manufacturing Process |
Hot Rolled / Cold Rolled / Hot Forging / Rolling / Machining |
|
SS 304 Round Bar Dimension |
Outside Diameter in the range of 4mm to 500mm |
|
SS 304 Round Bar Length |
2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
|
SS 304 Round Bar Forms and Shape |
Round, Square, Hex (A/F), Rectangle, Billet, Ingot, HRAP, Bright, Shaft, Forging Etc. |
|
SS 304 Round Bar Finish |
Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
|
SS 304 Round Bar Dimension Standard |
ASTM A 484 / ISO h11 / ISO K12 Tolerances F8 / h8, h9, h10, h11, h12, k12, k13, A-484, EN-10060, DIN-1013 etc. |
|
SS 304 Round Bar Heat Treatment |
Condition A in which the bars are Annealed |
|
SS 304 Round Bar Surface Finish |
Centreless Ground & Belt Polished, up to Ra value = 0.2 um (12 RMS), and Grit Polished of up to 180 to 600 |
|
SS 304 Round Bar Value Added Services |
Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Polishing |
|
SS 304 Round Bar Packaging |
Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
|
S304 Round Bar Shipment & Transportation |
By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Machinery Frames
|
Diameter orWidth(mm) |
Weight per meter |
Sectional Area |
Perimeter |
|||
|
Square(kg) |
Round(kg) |
Square(cm²) |
Round(cm²) |
Square(cm) |
Round(cm) |
|
|
5.0 |
0.20 |
0.15 |
0.25 |
0.20 |
2.0 |
1.57 |
|
5.5 |
0.24 |
0.19 |
0.30 |
0.24 |
2.2 |
1.78 |
|
6.0 |
0.28 |
0.22 |
0.36 |
0.28 |
2.4 |
1.88 |
|
7.0 |
0.38 |
0.30 |
0.49 |
0.38 |
2.8 |
2.20 |
|
8.0 |
0.50 |
0.39 |
0.64 |
0.50 |
3.2 |
2.51 |
|
9.0 |
0.64 |
0.50 |
0.81 |
0.64 |
3.6 |
2.83 |
|
10 |
0.73 |
0.63 |
1.00 |
0.79 |
4.0 |
3.14 |
|
11 |
0.95 |
0.75 |
1.21 |
0.95 |
4.4 |
3.46 |
|
12 |
1.13 |
0.89 |
1.44 |
1.13 |
4.8 |
3.77 |
|
14 |
1.54 |
1.21 |
1.96 |
1.54 |
5.6 |
4.40 |
|
16 |
2.01 |
1.58 |
2.56 |
2.01 |
6.4 |
5.03 |
|
18 |
2.54 |
2.00 |
3.24 |
2.54 |
7.2 |
5.65 |
|
20 |
3.14 |
2.47 |
4.00 |
3.14 |
8.0 |
6.28 |
|
22 |
3.80 |
2.98 |
4.84 |
3.80 |
8.8 |
6.91 |
|
25 |
4.91 |
3.85 |
6.25 |
4.91 |
10.0 |
7.85 |
|
28 |
6.15 |
4.83 |
7.84 |
6.16 |
11.2 |
8.80 |
|
32 |
8.04 |
6.31 |
10.24 |
8.04 |
12.8 |
10.05 |
|
36 |
10.17 |
7.99 |
12.96 |
10.18 |
14.4 |
11.31 |
|
40 |
12.56 |
9.86 |
16.00 |
12.57 |
16.0 |
12.57 |
|
45 |
15.90 |
12.49 |
20.25 |
15.90 |
18.0 |
14.14 |
|
50 |
19.62 |
15.41 |
25.00 |
19.64 |
20.0 |
15.71 |
|
56 |
24.62 |
19.34 |
31.36 |
24.63 |
22.4 |
17.59 |
|
63 |
31.16 |
24.47 |
36.69 |
31.17 |
25.2 |
19.79 |
|
71 |
39.57 |
31.08 |
50.41 |
39.59 |
28.4 |
22.31 |
|
80 |
50.24 |
39.46 |
64.00 |
50.27 |
32.0 |
25.13 |
|
CD |
Cold drawn |
P |
Polished |
|
CG |
Centreless ground |
HF |
Hot finished |
|
BD |
Bright drawn |
SRE |
Slit rolled edge |
|
P&T |
Peeled and turned |
RT |
Rough turned/peeled |
|
CF |
Cold finished |
HRAP |
Hot rolled annealed and pickled |
|
ST |
Smooth turned |
PR |
Peeled and reeled |

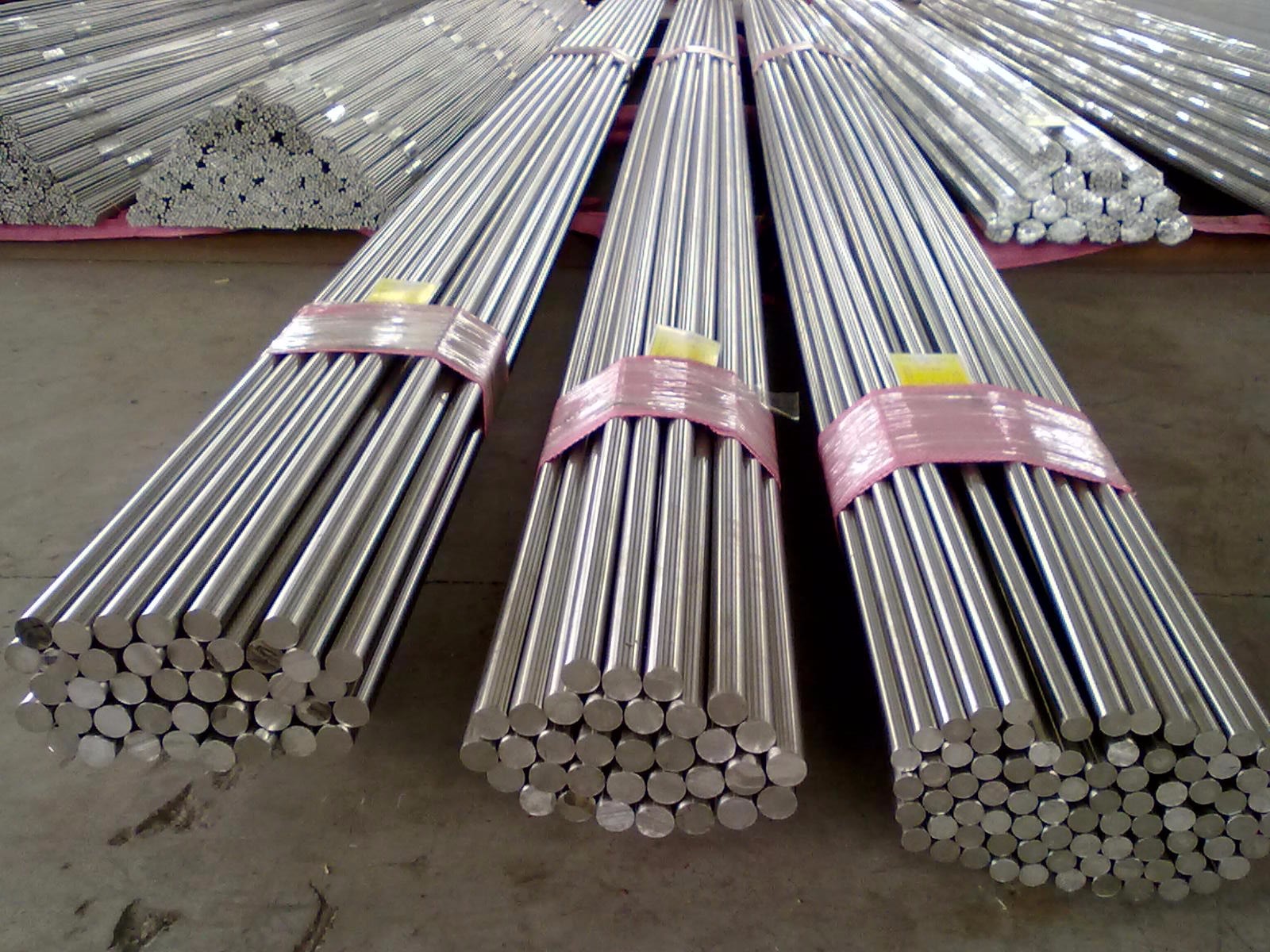

Standard seaworthy package:
Bundles, seaworthy wooden pallets or wooden cases,iron pallets,
water proof papers.With or without edge protector, steel hoop and seals.
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 27MTS
