304 stainless steel is a universal stainless steel material, with better high temperature resistance, can reach 1000-1200 degrees. 304 stainless steel has excellent corrosion resistance and good inter granular corrosion resistance.

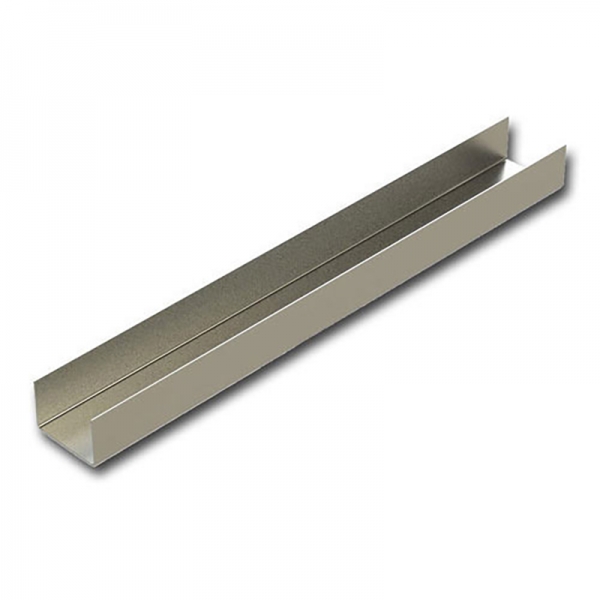

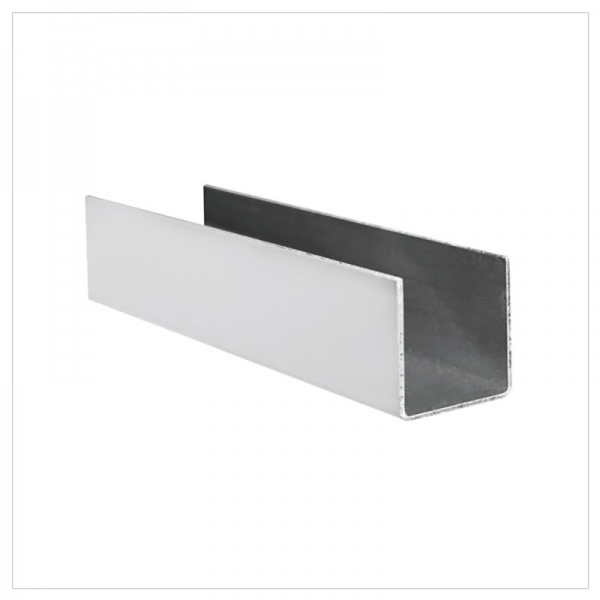

304 stainless steel custom C-Channel #4 finish is the brushed finish commonly seen on kitchen appliances and backs plashes. The 304 stainless steel custom C-Channel #4 finish has a PVC film on one side to help protect against scratching during fabrication and installation. Our 304 stainless steel custom C-Channel #4 finish meets the criteria for both the #3 and #4 finish.

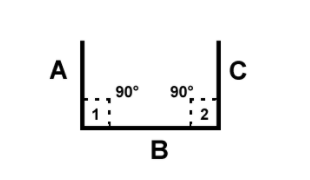

Unlike structural, extruded C- Channel, our custom C-Channel will be cut to your specifications and bent in a press break. Therefore, our custom C-Channel will give customers more variety of fabrication options, including a wide range of bending angles, hemmed edges (on thinner gauge material), flange options, uneven leg sizes, etc.

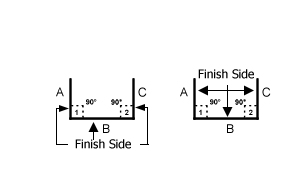

On our custom C-Channel made out of material with a finished side, Stainless Supply also offers the choice of which side the finish side is placed on the custom C-Channel, which can be selected in Step 2 of the Cost Calculator. For #4 brushed finish, #8 mirror finish, and Bright Annealed (BA) finish stainless steel, the finished side will have a protective film on it to help prevent scratching until the product is delivered.
We produce and distribute hot rolled and laser fused stainless steel channels throughout the world in both imperial and metric sizes.
Standard |
ASTM,AISI,SUS,JIS,GB,DIN,EN,BS |
|
Chemical Composition |
C,Mn,Si,P, S,Cr,N, Ni |
|
Material |
304,304L,309S,310S,316L,316Ti,317L,321,347H,201,202, 409L, 410,420J1,etc |
|
Surface |
hot rolled pickled ,polished ,sand blasting,hairline |
|
Trade Terms |
Price Term |
FOB,CFR,CIF, EXW |
Payment Term |
T/T,L/C,Western Union |
|
Package |
Export standard package as wooden box,bundled,Pvc |
|
Delivery Time |
7-16 working-days after get the deposit |
|
Quality Guarentee |
ISO9001,SGS |
|
Application |
Stainless steel channel bar applies to petroleum, chemical industry, electric power, boiler, high temperature resistant,corrosion resistant. low temperature resistant |
50×37×4.5mm |
5# |
5.44kg |
140×60×8mm |
14#A |
14.53kg |
63×40×4.8mm |
6.3# |
6.635kg |
160×63×6.5mm |
14#B |
16.73kg |
65×40×4.8mm |
6.5# |
6.70kg |
160×65×8.5mm |
16#A |
17.23kg |
80×43×5mm |
8# |
8.045kg |
180×68×7mm |
16#B |
19.755kg |
100×48×5.3mm |
10# |
10.007kg |
180×68×7mm |
18#A |
20.17kg |
120×53×5.5mm |
12# |
12.06kg |
180×70×9mm |
18#B |
23kg |
126×53×5.5mm |
12.6# |
12.37kg |
200×75×9mm |
20# |
25.777kg |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
N% |
Mo% |
Cu% |
=0.08 |
=1.0 |
=2.0 |
=0.045 |
=0.03 |
18.0-20.0 |
8.0-10.0 |
– |
- |
– |
T*S |
Y*S |
Hardness |
Elongation |
|
(Mpa) |
(Mpa) |
HRB |
HB |
(%) |
=520 |
=205 |
– |
– |
=40 |
By employing the state-of-the-art tools and techniques, such as plasma cutting, metal fabricators and water jet and laser, it is easy to mould steel into numerous shapes for specific needs. The experienced metal fabricators can help you with custom metal fabrication using steel channels.
Strength-To-Weight Advantages – The physical and structural nature of stainless steel allows a higher strength-to-weight ratio than other metals.
Aesthetic Appeal – 304 Stainless steel channels are bright and simple to retain, hence they offer a contemporary and appealing appearance to your structure.
Easy Fabrication – It is widely used in fabrication owing to the use of modern steel-making methods, which permit stainless steel to be cut, fabricated, machined, welded, and formed, as readily as traditional steels.
High Resistance Power – It has high corrosion resistance, which allows it to be used even in harsh environments. It is resistance to heat and fire as well, which allows it to resist scaling and retain strength at high temperatures also. It is capable of resisting water, acids, alkaline solutions, and chlorine bearing environments commonly used in process plants.
Improved Hygiene – 304 Stainless steel channels can be cleaned easily, due to which it is a primary choice where strict hygienic guidelines are required, such as hospitals, kitchens, slaughterhouses and other food processing plants.

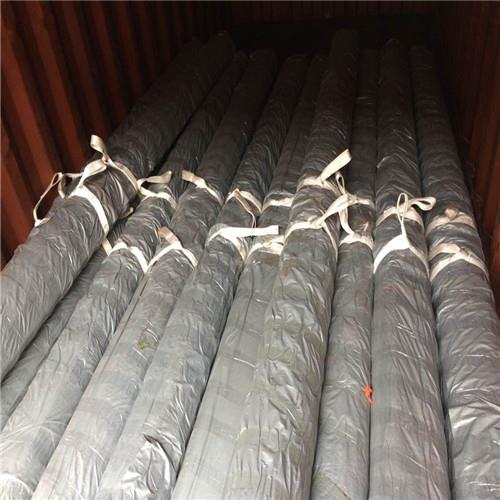

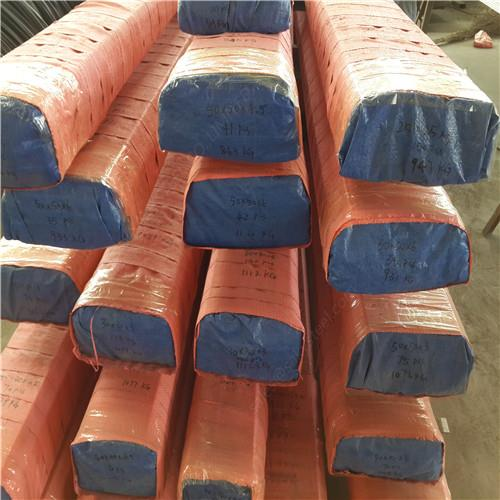

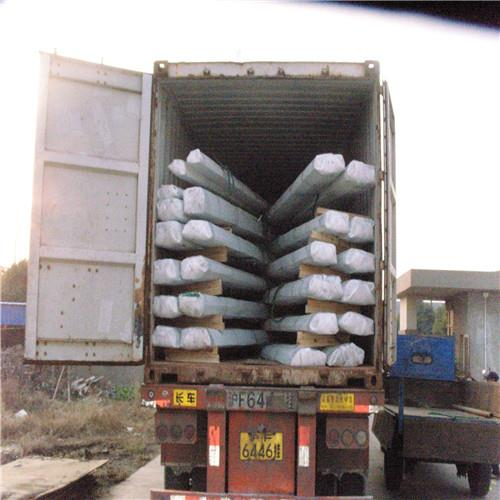

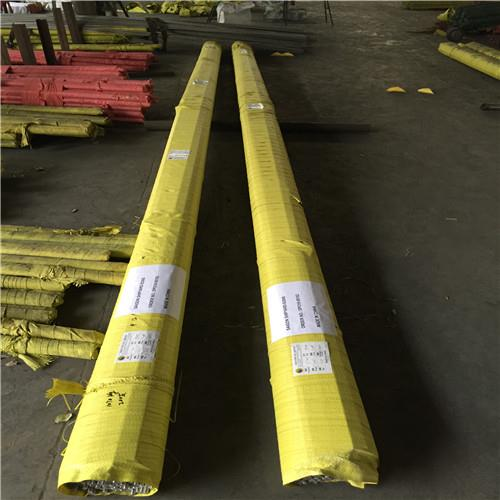

304 Stainless Steel Channel Packaging:
304 Stainless Steel Channel are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
