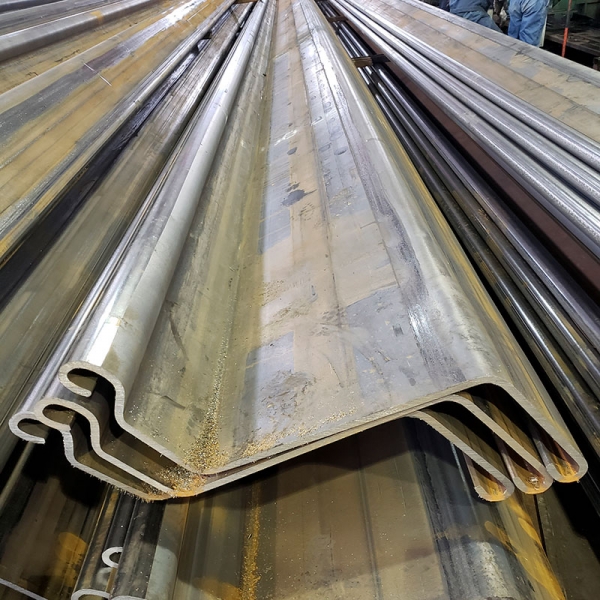

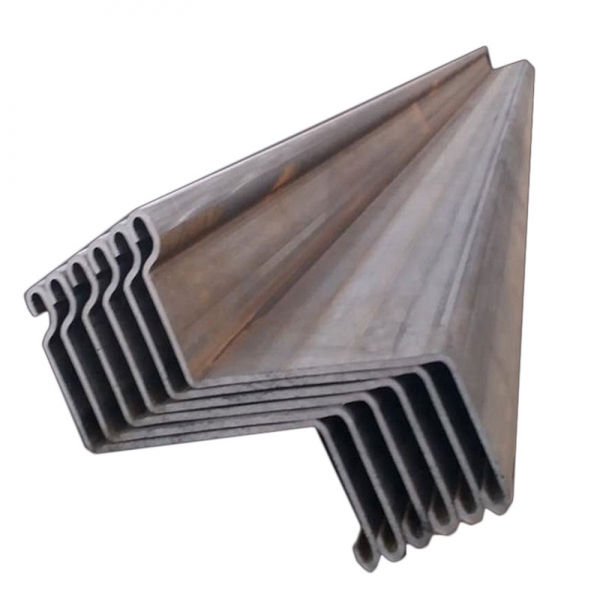

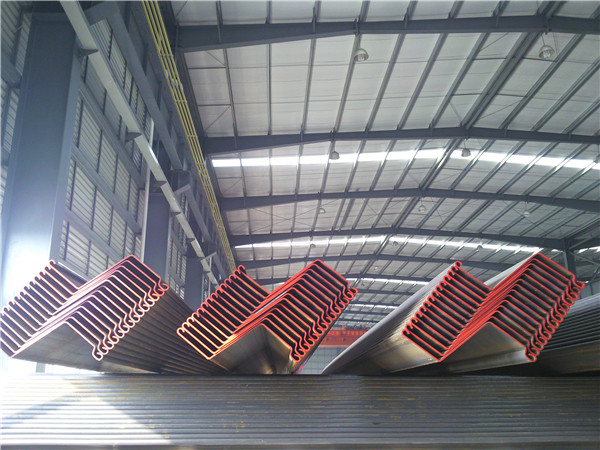

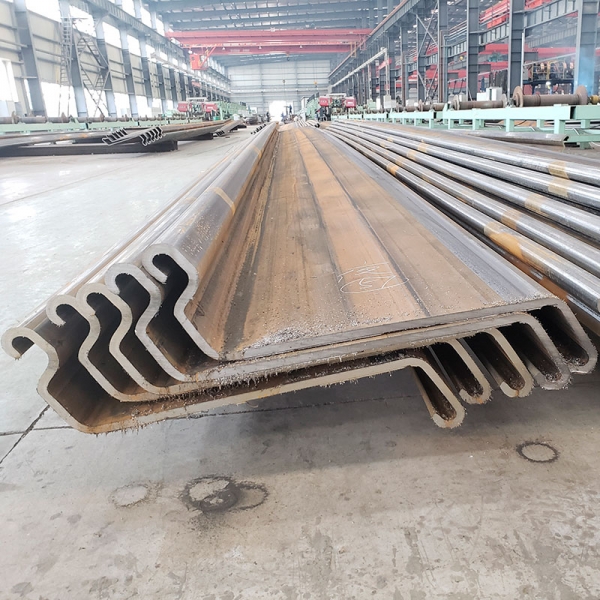

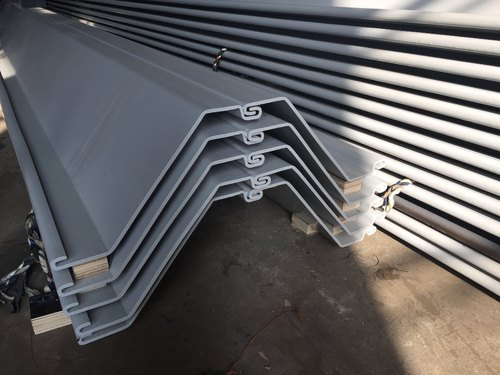

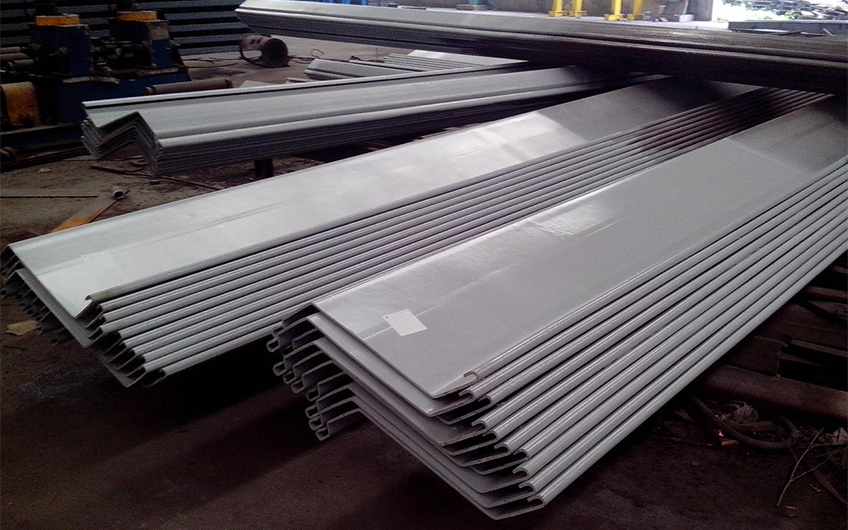

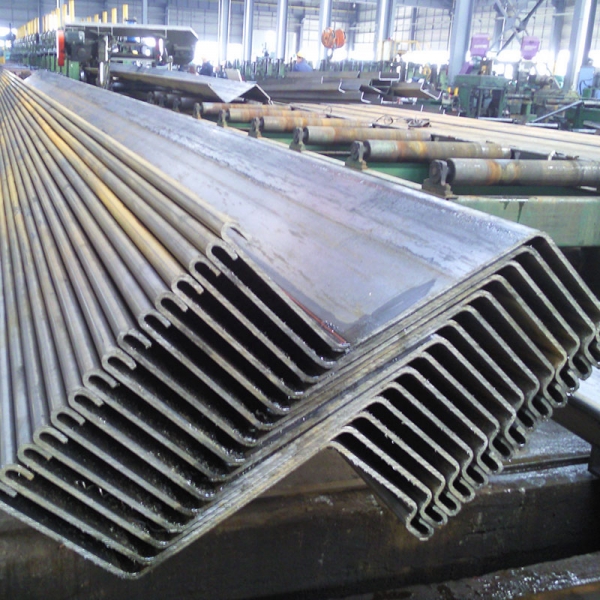

Z-shaped sheet piles are called Zs because the single piles are shaped roughly like a horizontally stretched Z. The interlocks are located as far away from the neutral axis as possible to ensure good shear transmission and increase the strength-to-weight ratio. Z piles are the most common type of sheet pile and can be used in a wide variety of applications.
*Extremely competitive section modulus/mass relation,
*Lighter than U-piles when comparing sections with equivalent properties,
*Increased inertia and thus reduced deflection allowing the choice of high yield strength steels for the most economical solution,
*Large width resulting in high installation performance and enhanced water-tightness.
Steel Grade: S275,S355,S390,S430,SY295,SY390, etc.
Standard : EN10248, ASTM A-328,JIS A 5523 , JIS A 5528

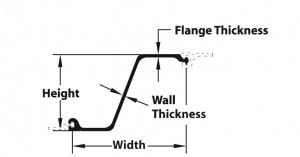

Width:580mm,630mm,675mm,700mm,750mm,770mm,800mm,850mm or customized
Height: 250mm, 300mm,,350,400mm, 420mm,460mm,500mm,540mm,580mm or customized
Thickness: 5mm,6mm,7mm,8mm,8.5mm,9mm,9.5mm,10mm,10.5mm,11mm,11.5mm,12mm,12.5mm,
13mm,13.5mm,14mm,15mm,16mm or customized

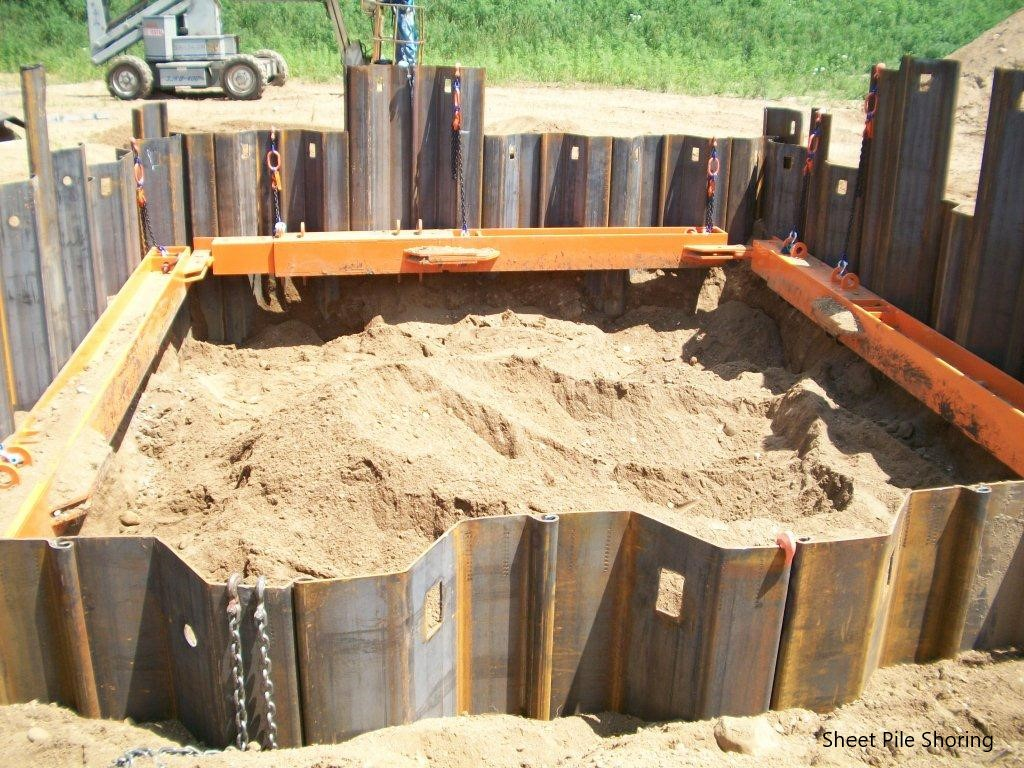

Z-type steel sheet piles applications include (but not limited to) port and harbour structures, river revetments, retaining walls, cutoff walls, slope protection, cofferdams,barrier walls and bulkhead walls for ports.
Wuxi liansen Metal Technology Co., Ltd is a Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions for your requirement.
