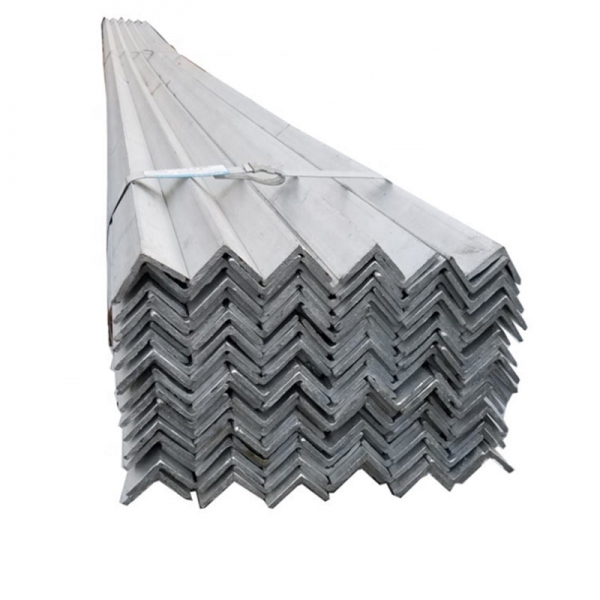

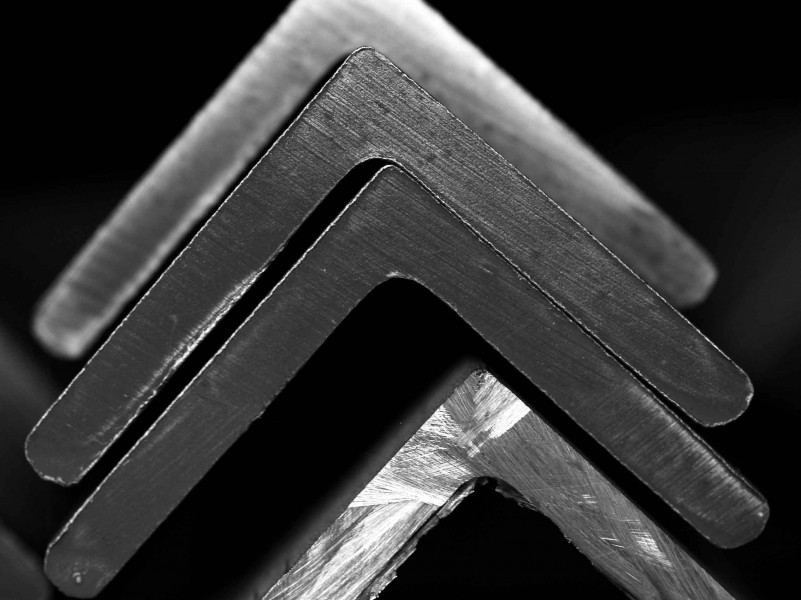

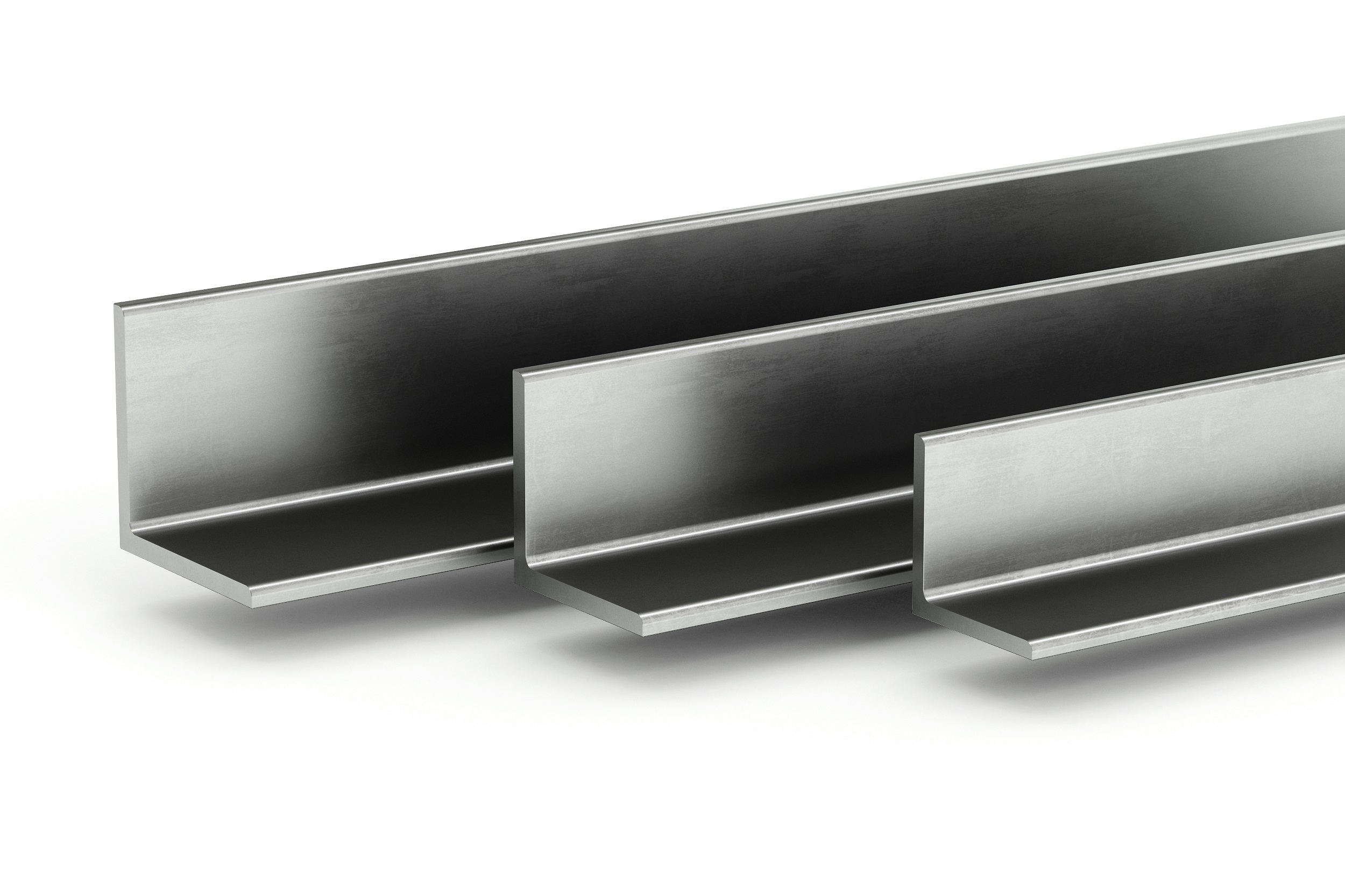

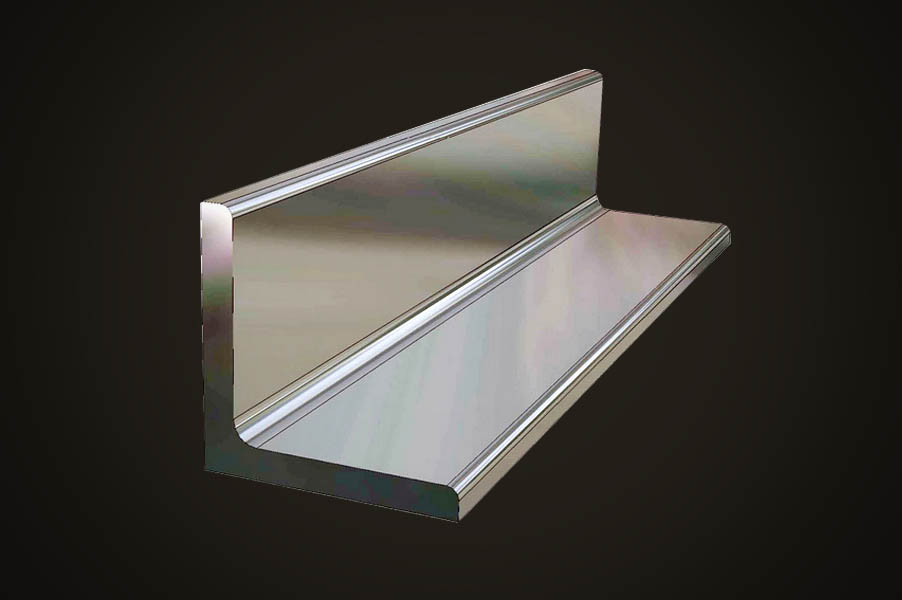

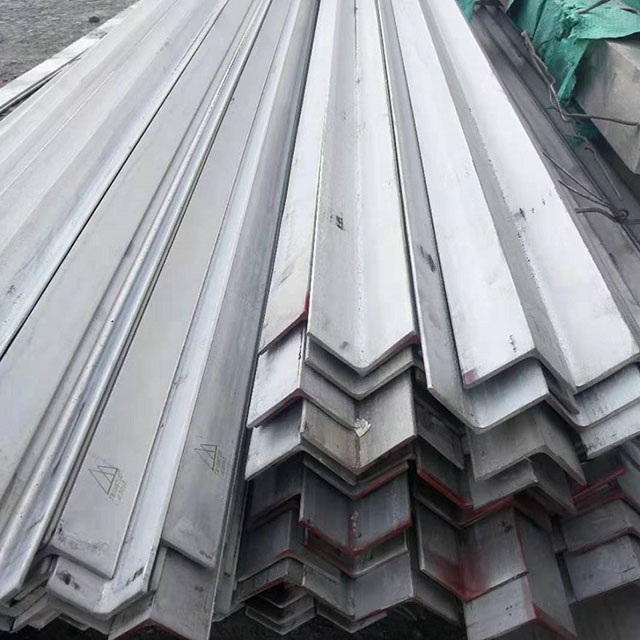

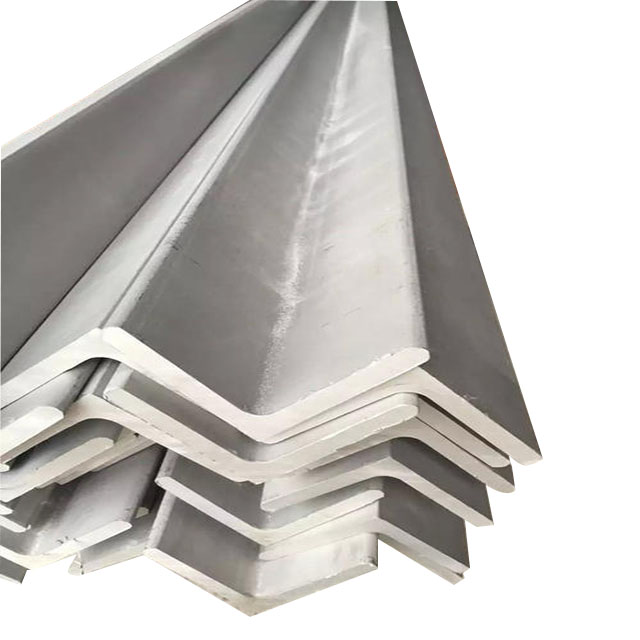

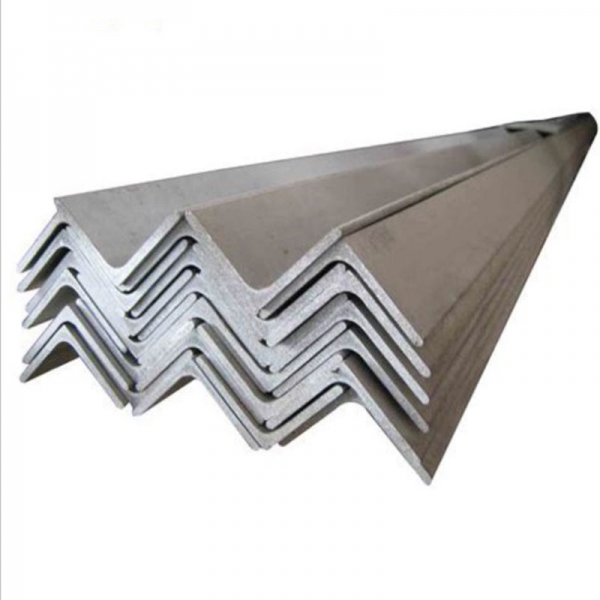

304 Stainless steel equal leg angle is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This product has a semi-smooth, dull grey finish and tapered edges. 304 stainless steel is a high strength material with excellent corrosion resistance making it ideal for shelves, brackets, bracing, and other architectural uses. ASTM A276-10 is the standard specification for structural stainless steel.
304 stainless steel angle is commonly used to provide structural support in various applications. 304 SS angle is corrosion resistant and provides good mechanical properties, which makes it an ideal choice for construction projects. This stainless product also provides good mechanical properties, with added machinability and high tensile strength. Stainless steel angle can also be stamped, drawn or formed.
ASTM-A276 / QQ-S-763
304 SS angle bar is used in numerous types of industrial applications, including:
Architectural trim & molding
Framing
Brackets
Structural supports
General construction
Shelves
304
Good welding & fair machining.
Good corrosion resistance.
|
Element |
Percentage |
|
C |
0.08 max |
|
Fe |
66.34 - 74 |
|
Mn |
2 max |
|
Ni |
8 - 10.5 |
|
P |
0.045 max |
|
S |
0.03 max |
|
Si |
1 max |
|
Cr |
20 |
|
|
Imperial |
Metric |
|
Density |
0.289 lb/in3 |
8.0 g/cc |
|
Ultimate Tensile Strength |
73,200psi |
310 MPa |
|
Yield Tensile Strength |
31,200psi |
276 MPa |
|
Melting Point |
2,550 - 2,651°F |
1,400 - 1,455°C |
|
Temper |
Annealed |
|
Hardness Rockwell |
B70 |
|
Hardness Brinell |
123 |
