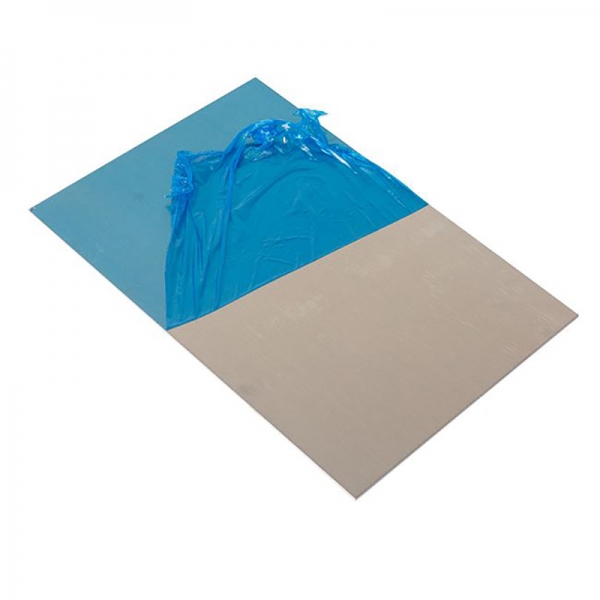

316 / 316L stainless steel plates are part of the austenitic family of stainless steel and is the most widely used varieties of stainless plate. 316 grades contain a higher level of Nickel than 304 giving it an improved corrosion resistance over 304 grades. 316/316L plate is a good option for marine applications due to a good atmospheric corrosion resistance. 316L is a low carbon modification to 316 grade.
Grade 316 stainless steel plate is the standard molybdenum-bearing grade of stainless steel plate. The molybdenum gives 316 stainless steel plate better overall corrosion resistant properties than grade 304 stainless steel plate. It has particularly higher resistance to pitting and crevice corrosion in chloride environments. 316 stainless steel plate has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 stainless steel plate also has outstanding welding characteristics. Grade 316L stainless steel plate is the low carbon version of 316 stainless steel plate and is extensively used in heavy gauge welded components.
|
Product Name |
316 Stainless Steel Plate |
|
Length |
as required |
|
Width |
3mm-2000mm or as required |
|
Thickness |
0.1mm-300mm or as required |
|
Standard |
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc |
|
Technique |
Hot rolled / cold rolled |
|
Surface Treatment |
2B or according to customer requirement |
|
Thickness Tolerance |
±0.01mm |
|
Application |
It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components. |
|
MOQ |
1 ton , We can accept sample order. |
|
Shipment Time |
Within 15-20 workdays after receiving deposit or L/C |
|

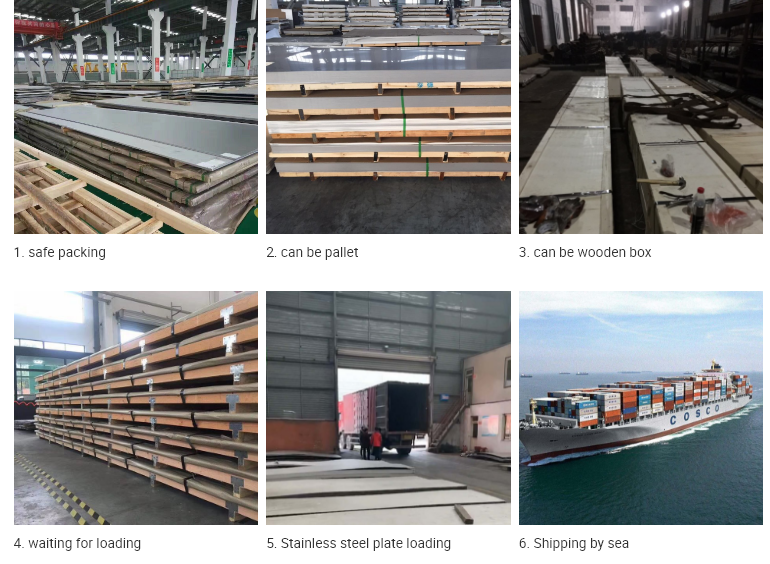

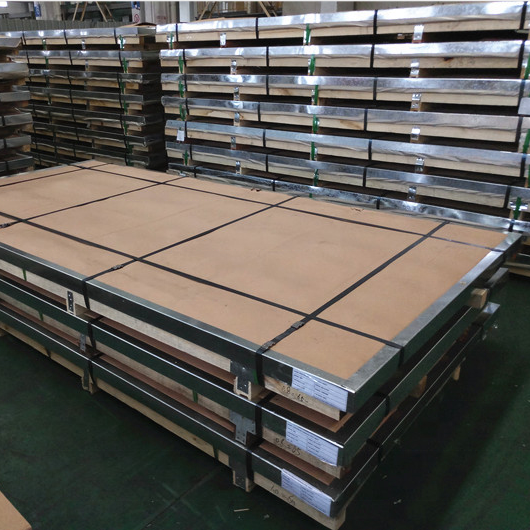

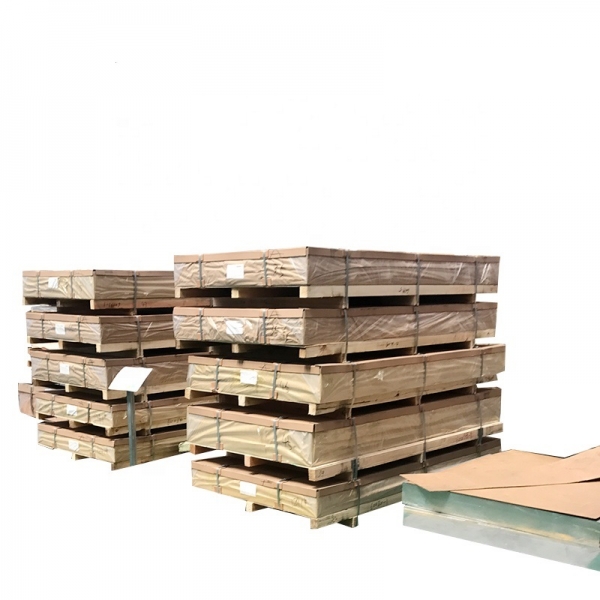

Export Packing |
Waterproof paper, and steel strip packed. |
|
Capacity |
250,000 tons/year |
|

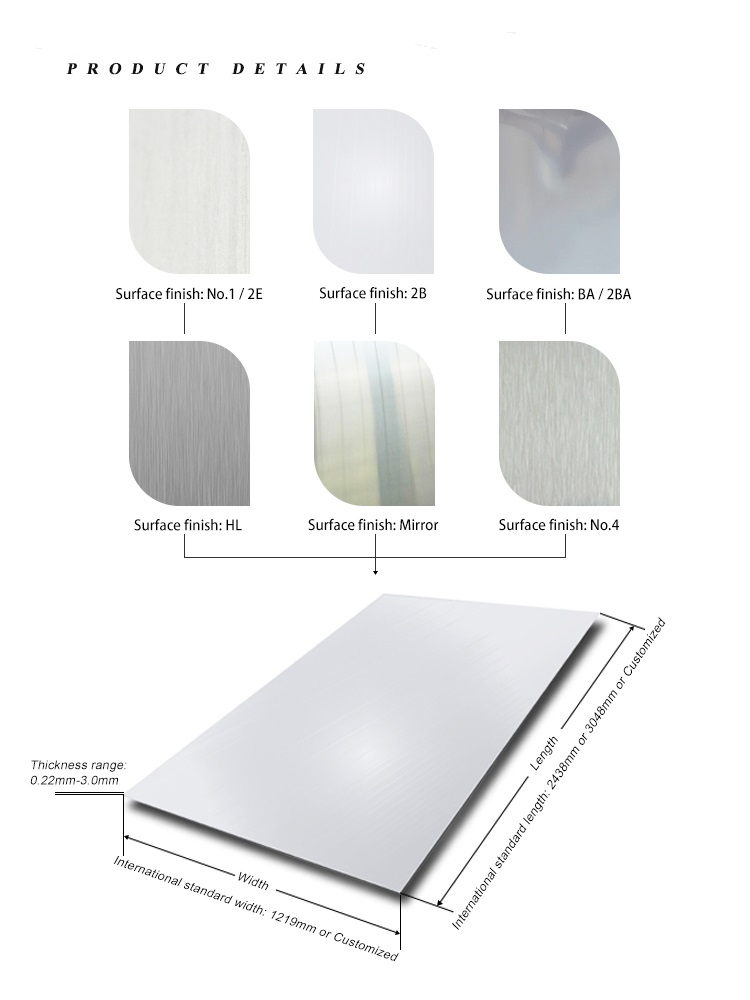

Surface Finish |
Definition |
Application |
|
2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils. |
|
BA |
Those processed with bright heat treatment after cold rolling. |
Kitchen utensils, Electric equipment, Building construction. |
|
NO.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction. |
|
NO.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment. |
|
HL |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. |
Building construction |
|
NO.1 |
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe. |
This type of stainless steel plate has become very popular in the chemical, medical and pharmaceutical industry due to its strong resistance to corrosion. 316 and 316L stainless steel plate has a higher chromium content and molybdenum which makes this type of stainless steel plate resistant to corrosive elements. Because of its composition, 316 and 316L stainless steel plate is more tolerant of corrosion than its 304 and 304L stainless steel plate counterpart. 316 and 316L stainless steel plate also has many applications in the food processing industry, in sinks and splash backs, cutlery, saucepans and other equipment used in the dairy, wine, and beer processing industry. 316 and 316L stainless steel plate is also commonly utilized in the textile and paper processing industry, along with in water treatment and petroleum refining systems. Because of its tolerance for corrosive mediums, 316 and 316L stainless steel plate is utilized in marine environment as well. Another common use for 316 and 316L stainless steel plate is in the production and use of pressure vessels, tanks, heat exchangers, piping systems, flanges, fittings valves and pumps. Additional areas where 316 and 316L stainless steel plate is commonly utilized is in the production of lab equipment and in chemical processing and storage. 316 and 316L stainless steel plate is also found in pollution control equipment and mining tools such as screens. 316 and 316L stainless steel plate is also frequently used in coastal architecture, costal balustrading and in boat fittings. 316 and 316L stainless steel plate can also be made into nuts, bolts, springs, screws, and tubing.
